Subtitle: Condenser, evaporator, compressor and blower configured as one matched set for the customer's machine, cab layout and duty cycle, with the assembled set tested and verified before delivery; available as a complete set or as individual components.
[Publication date]

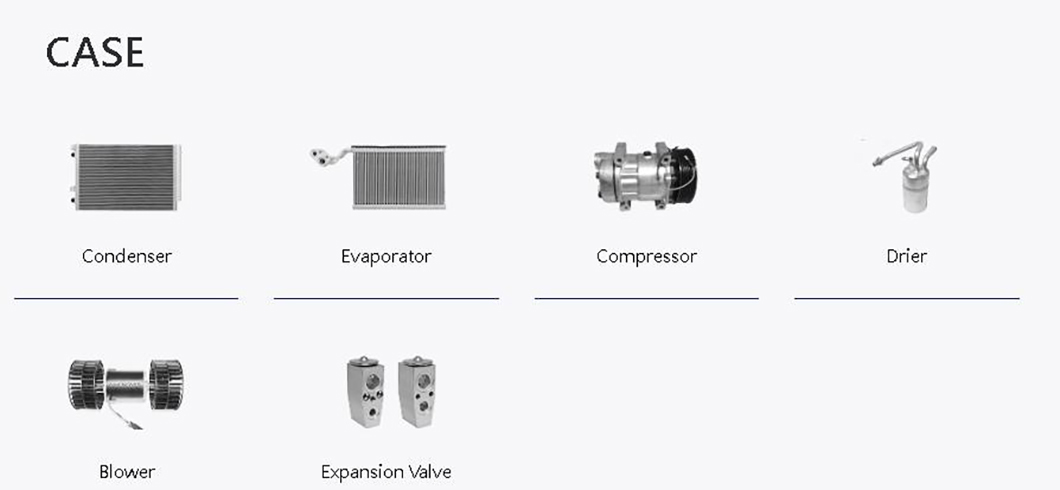

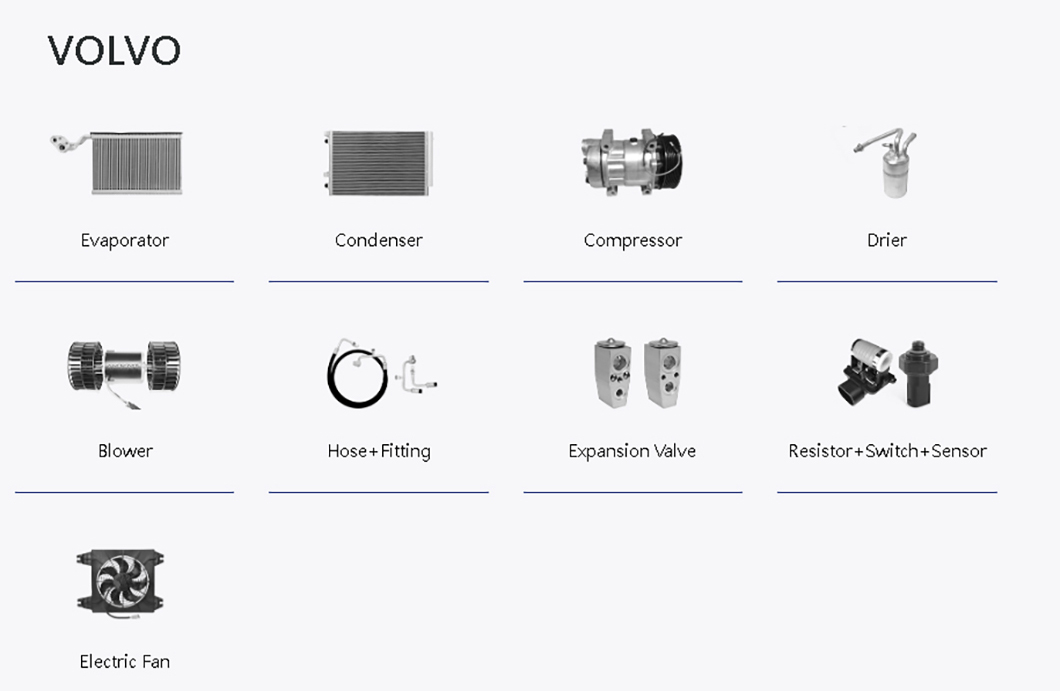

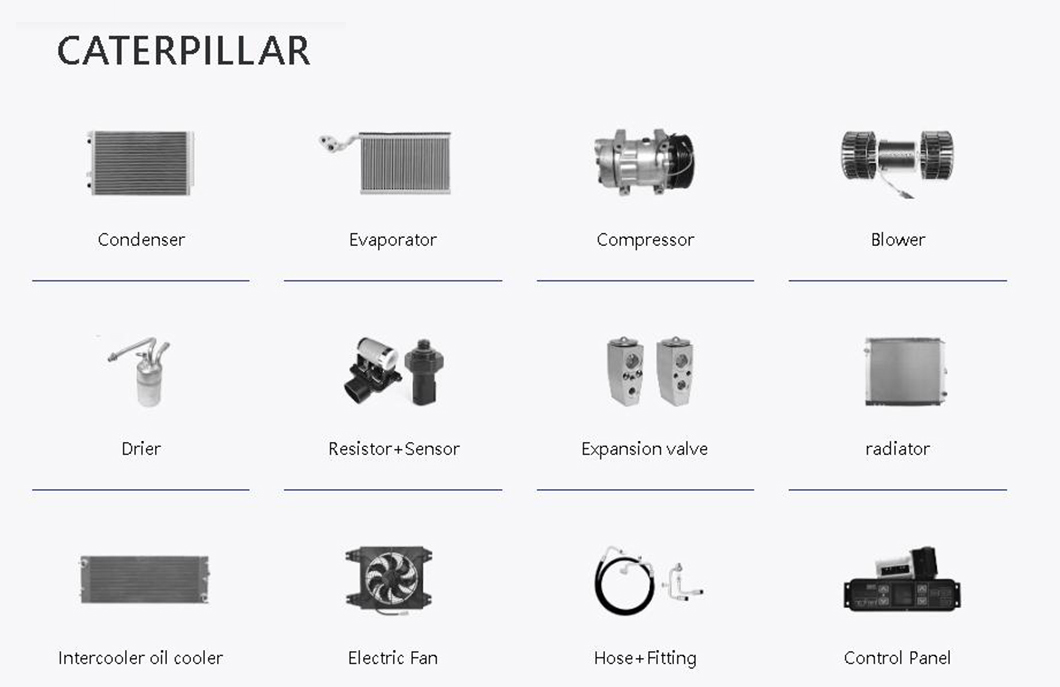

In agricultural and construction machinery, the four core components of a cab air-conditioning system — condenser, evaporator, compressor and blower — can be selected and combined as one matched set according to the customer's machine model, cab space and operating conditions, and the assembled set is tested and verified before delivery. We support full-set replacement as well as single-component configuration on request, and can supply optional expansion valve, receiver/drier, hose assemblies, control panel and wiring harness, mounting brackets and other parts.
1. How "each part passes, but the combination does not" happens
Cab air conditioning on agricultural and construction machinery runs continuously in high ambient temperatures, dust and strong vibration. In day-to-day replacement and repair work, the problem is rarely "it will not fit" — it is "it fits, but it does not work well". Three patterns account for most cases:
- Heat-exchange mismatch: the condenser and evaporator do not match in heat-exchange capacity, so actual cooling capacity falls short of the design value;
- Drive mismatch: compressor displacement or operating voltage does not suit the original system, causing frequent cycling or protective shutdowns;
- Air-delivery mismatch: blower airflow and static pressure are insufficient, discharge air temperature does not come down, and the cab ends up unevenly cooled.
The common thread is that every individual part meets its own spec, yet the combination does not hold up. And when parts are replaced one at a time, the customer has little chance to judge the combination before it is installed — which is exactly the problem a matched set is meant to solve.
2. Our approach: match against one set of duty parameters first, then verify the complete set
A matched set is not four components placed on the same quotation. It is two steps:
Step one: select against one set of duty parameters. The heat-exchange area of the condenser and evaporator, the displacement and operating voltage of the compressor, and the airflow and static pressure of the blower are cross-checked against the same set of operating parameters rather than chosen separately from individual spec sheets.
Step two: assemble the set and verify it. Once the components are matched and assembled into a complete system, the set is verified before delivery to confirm that its behaviour under the actual working conditions matches the selection criteria; only then does it move into supply. Typical verification dimensions include:
- Cooling performance: whether discharge air temperature and the cab cooldown curve meet the selection target;
- Compressor operation: whether start-stop behaviour is normal and running current stays in a reasonable range;
- Airflow and static pressure: whether delivered airflow and pressure satisfy the cab's outlet layout;
- Interfaces and sealing: whether hose routing, interface dimensions and sealing match the customer's installation conditions.
Where a combination does not pass verification, we adjust the configuration and verify again rather than shipping it as is. To be clear, the purpose of this approach is not to require customers to buy a complete set — it is to put every component in a position where the parameters line up, so that repeat rework from "the part was replaced but it still does not work" is reduced, along with the risk of one mismatched component damaging the others.
3. Selection criteria for the four core components
What makes a matched set work is that the selection basis can be checked. We match component by component against the following dimensions:
| Component | Selection basis | Parameters required from the customer |
| Condenser | Installation space, face area and heat-dissipation conditions | Engine-bay or roof-mount space, duct routing, ambient temperature |
| Evaporator | Cab volume, outlet layout and airflow distribution | Cab dimensions, outlet positions and count |
| Compressor | Operating voltage, displacement and required cooling capacity | Supply voltage or engine-driven arrangement, original displacement and cooling capacity |
| Blower | Airflow, static pressure, noise and power draw | Original airflow, mounting interface dimensions, noise limits |
| Optional parts (expansion valve, receiver/drier, hose assemblies, control panel and wiring harness, mounting brackets, etc.) | Kept consistent with the parameters above, so the set can be installed as one unit | Interface specifications, control method, installation space |
4. From requirement input to matched-set delivery
Once the customer provides the machine model, engine or electrical parameters, cab structure dimensions and main operating environment, we complete the set selection. The process runs as follows:
- Requirement confirmation — machine model, power or engine parameters, cab dimensions and operating environment;
- Selection and configuration list — specifications, interfaces and quantities for the four core components and optional parts;
- Drawing confirmation — layout and interface drawings provided on request; the configuration is locked once both sides confirm;
- Assembly and verification — the set is assembled to the confirmed configuration and released for delivery only after testing and verification;
- Supply and technical support — complete-set or individual-part supply, with trial fitting and installation guidance on request.
For customers replacing the whole system, we supply in one set, which cuts the time cost of buying in batches and commissioning repeatedly.
5. Application scenarios
The programme covers cab and operator-cabin air-conditioning systems on tractors, harvesting machinery, crop-protection machinery and agricultural transport machinery, as well as on excavators, wheel loaders, road rollers, cranes and other construction machinery. The exact machine compatibility list is confirmed by both sides, and can be taken further against [example machine models].
One note: cooling capacity, airflow and installation space requirements differ considerably between machine models and duty cycles. We recommend providing complete original parameters and installation conditions at the selection stage so the set can be matched in one pass and avoid repeated adjustment later.
6. Supply and technical support
We offer both complete-set and individual-part supply: customers can buy the full set or just one component. Parts are supplied against the configuration list confirmed by both sides. Stock availability and lead time for custom configurations depend on the complexity of the selection and whether a sample must be confirmed first. Products carry the agreed warranty, and we provide technical support through selection, installation and commissioning, including drawing confirmation and trial fitting on request.
About us
Changzhou Holicen New Energy Technology Ltd. focuses on matched-set configuration, testing and verification, and component supply for cab climate systems on agricultural and construction machinery. Around condensers, evaporators, compressors, blowers and the associated hoses and control components, we support agricultural and construction machinery customers from selection and verification through to complete-set supply.
Contact
- Email: holicen@hlskaac.com
FAQ
Q1: What does a complete set include?
The four core components — condenser, evaporator, compressor and blower. On request, it can also include an expansion valve, receiver/drier, hose assemblies, control panel and wiring harness, mounting brackets and other parts to form a complete set ready for installation.
Q2: How do you make sure the components match one another?
We select and combine them against one set of duty parameters, then run a verification pass on the assembled set before delivery — covering discharge air temperature and cooldown behaviour, compressor start-stop and running current, airflow and static pressure, and interfaces and sealing. Only combinations that pass are shipped. Compared with part-by-part replacement, this adds a "verify after assembly" step.
Q3: Can I replace just one part, for example only the compressor or the blower?
Yes. A matched set does not mean a mandatory full-set purchase — we can configure a single component or a complete set on request. If the other components in the original system are aged or clearly out of spec, replacing the whole set usually avoids the mismatch that comes with mixing new and old parts. If the rest of the system is in good condition, single-part replacement remains an option, and we will advise on the key matching points at the selection stage.
Q4: How long does a custom set take?
Mainly a function of how complex the selection is and whether a sample must be confirmed first. Production can normally be scheduled once the machine parameters, configuration list and drawings are confirmed. [To be confirmed: lead time]
Q5: Which machines and working conditions does it suit?
Cab air-conditioning systems on tractors, harvesting machinery, crop-protection machinery and other agricultural machinery, as well as on excavators, wheel loaders, road rollers, cranes and other construction machinery. Specific compatibility is confirmed against the machine list and duty parameters.
