The voltage question is decided by your vehicle, not by the air conditioner. Most heavy trucks built outside North America — and many North American models — run 24V electrical systems (two 12V batteries in series); RVs, vans, box trucks and light commercial vehicles run 12V. North American semi trucks are frequently 12V, so confirm your truck's system before ordering. Most quality parking air conditioners accept both DC12V and DC24V, so the practical questions are about current draw, wiring, and battery setup.

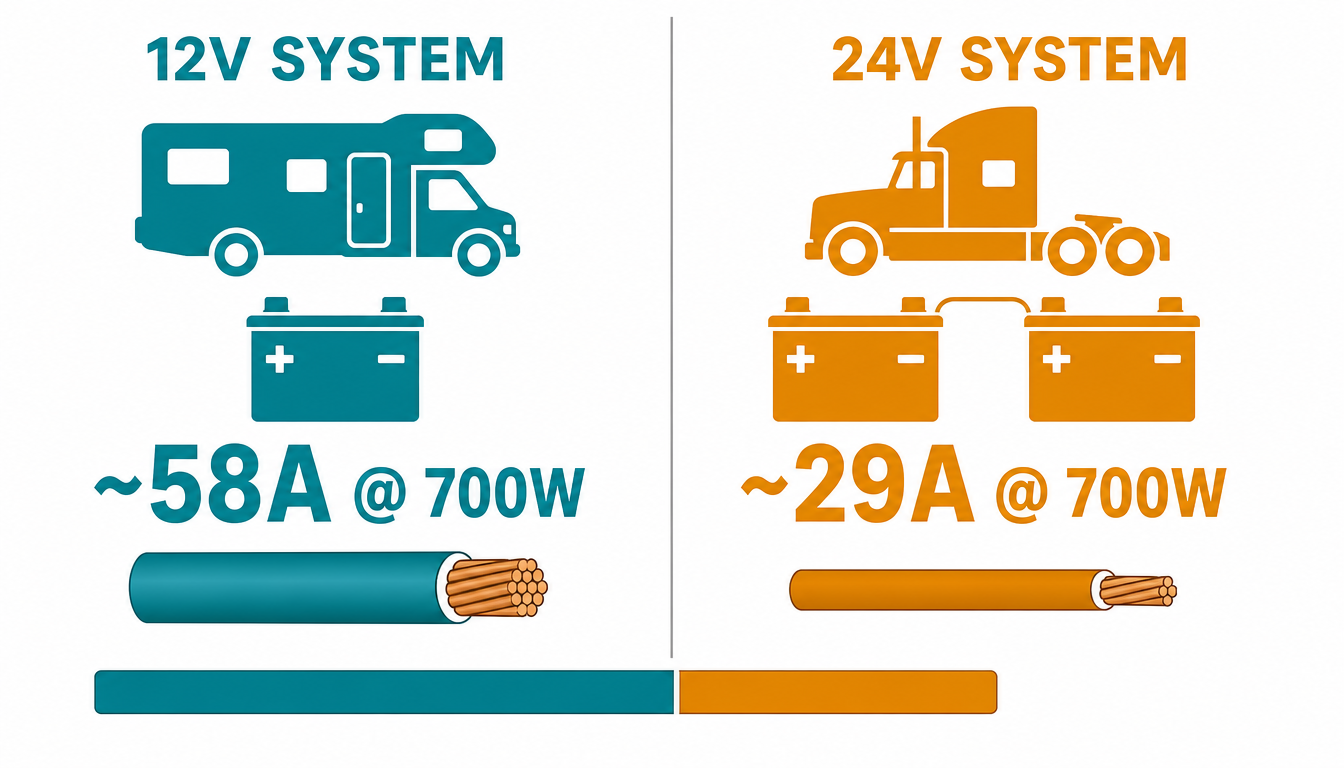

12V vs 24V: what actually changes
The cooling power is identical — what changes is the current the unit draws from your electrical system.
| Parameter | 12V system | 24V system |
| Current at 700W | ≈ 58A | ≈ 29A |
| Cable thickness needed | Thicker (e.g. 25–35mm²) | Thinner (e.g. 10–16mm²) |
| Typical vehicles | RVs, vans, light trucks, cars | Semi trucks, buses, heavy trucks |
| Battery config | Single 12V bank | Two 12V batteries in series |
| Voltage drop risk | Higher on long cable runs | Lower |
Cable sizes assume a typical 3–5 m run — longer runs need thicker cable.

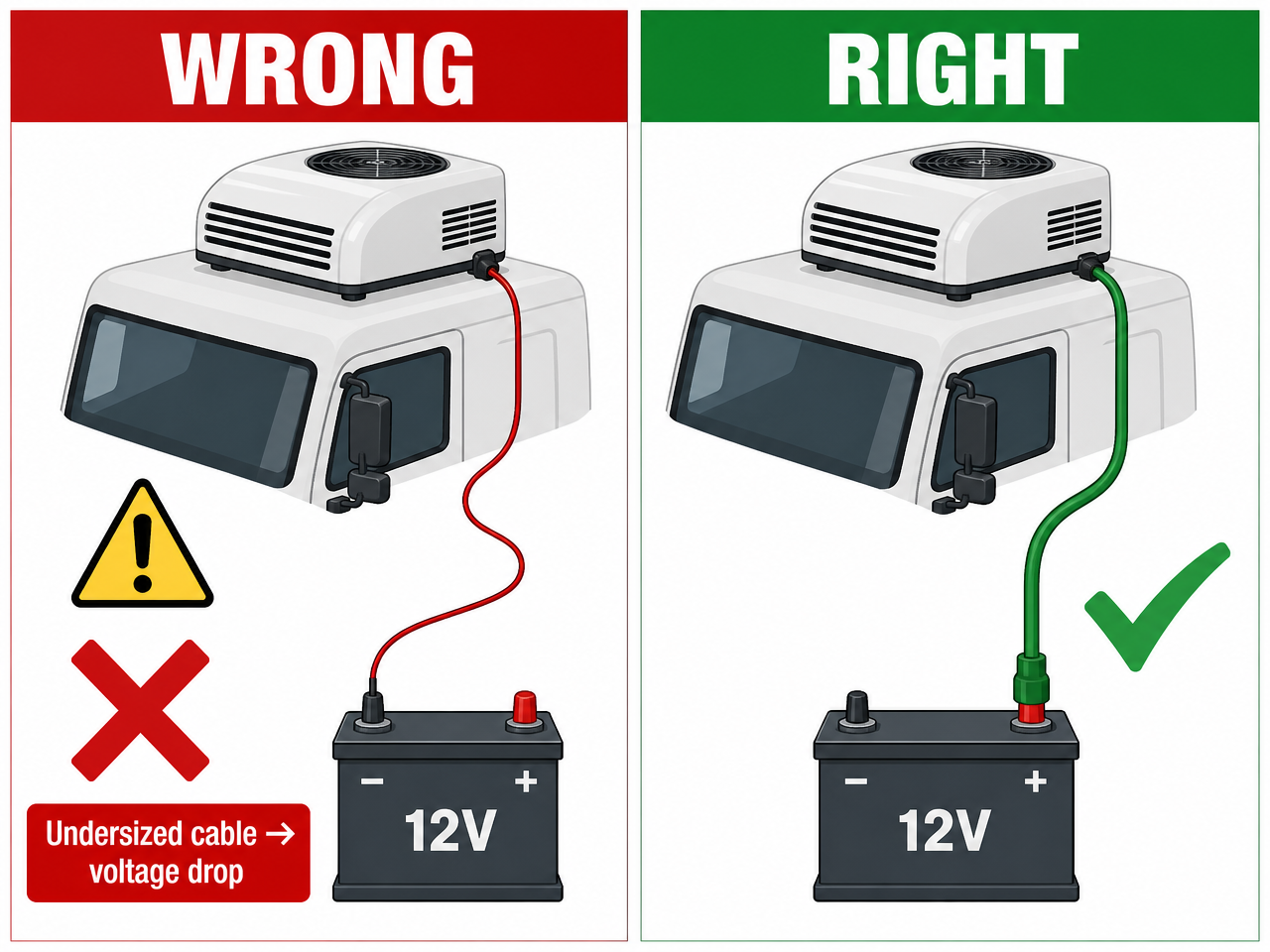

Higher current on a 12V system means thicker cables and more attention to voltage drop. This is one of the most common installation mistakes — undersized cable on a 12V unit causes the compressor to run weak or trip low-voltage protection.

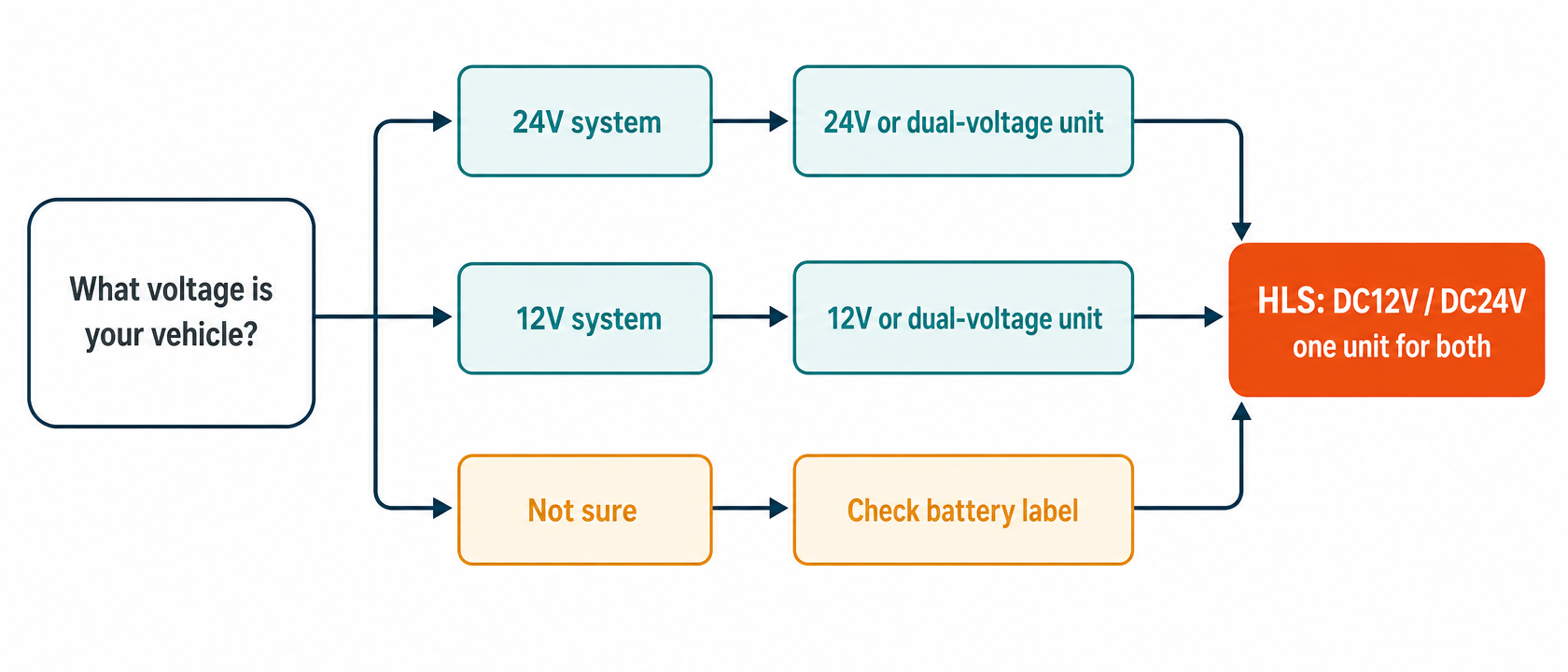

How to choose
- Match the unit to your vehicle's system. If your truck is 24V, buy a 24V-capable unit (or a dual-voltage DC12V/24V model — most modern units, including Holicen HLS models, accept both automatically). If your vehicle is 12V, a dual-voltage or 12V-rated model is the safe pick.
- Check the low-voltage cutoff. On a 24V semi, the cutoff protects the pair of starting batteries; on a 12V RV it protects the house bank. Confirm the unit's protection works with your system before ordering.

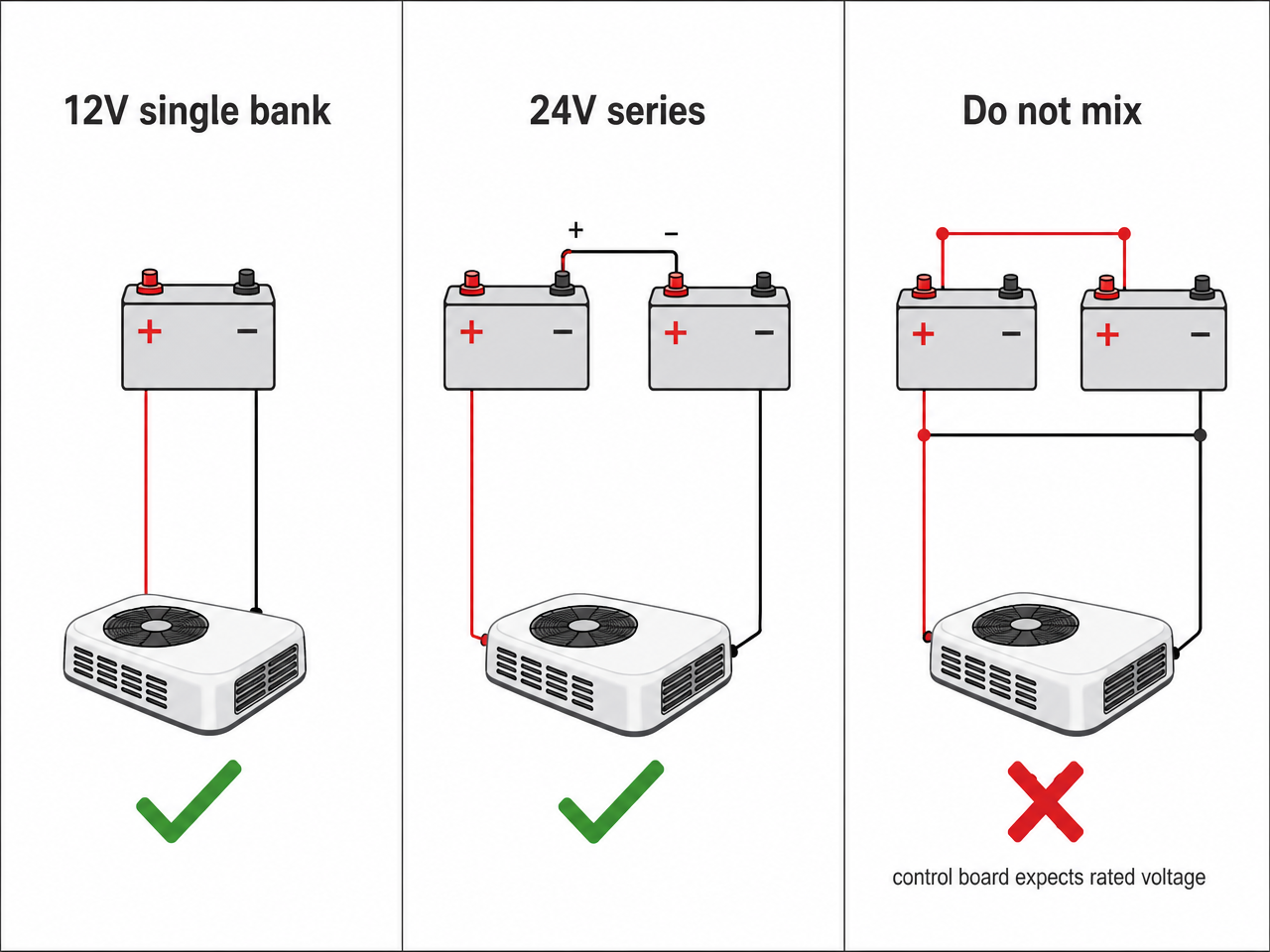

- Do not mix banks. Running a 24V unit from two 12V batteries in parallel (12V) will not work; the control board expects the rated voltage range.
A practical example
The Holicen HLS one-piece rooftop parking air conditioner is rated DC12V/DC24V, draws 700W typical (400–900W), and its intelligent control board handles either supply within the rated range — one SKU covers both semi fleets and RV customers, which also simplifies your parts inventory.
For background on idle reduction and electrical system planning, the US Department of Energy's Alternative Fuels Data Center is a solid reference (https://afdc.energy.gov/conserve).
