A 12V truck parking air conditioner draws about 700W at full load — and significantly less once its inverter compressor settles into steady state. On a typical 200Ah lithium battery bank, that works out to roughly 3–4 hours of continuous cooling. For overnight sleeper use, most owner-operators install 300–400Ah of battery capacity, which delivers 5–8 hours. The exact number depends on four things: the unit's power draw, your battery bank, the outside temperature, and your set temperature.
What determines battery runtime?
Power draw of the unit. Draw varies by model — compact sleeper units sit at the low end (from around 400W), heavy-duty rooftop units at the high end (up to around 900W). A 2,600W scroll-type inverter rooftop unit, such as the Holicen HLS, draws about 700W at rated conditions. Inverter compressors modulate output, so power draw — and therefore runtime — improves automatically once the set temperature is reached.
Usable battery capacity. A LiFePO4 (lithium) bank can use roughly 80–90% of its nominal capacity; lead-acid only about 50%. The table below assumes lithium with 80% usable capacity.
Ambient and set temperature. Setting the unit to 18–30°C (its working range) and parking in shade makes a real difference in compressor duty cycle.
Cab insulation and sun exposure. A dark cab in direct sun in a Texas summer will cycle the compressor far more than a parked truck in moderate weather.
The math, and what it means for your battery bank
The calculation is straightforward: runtime = battery voltage × amp-hours × usable capacity ÷ average power draw. On a 12V bank with 80% usable capacity:
| Battery bank (12V) | Usable energy | Continuous at 700W | Typical overnight (~500W avg) |
| 200Ah | ≈1.9kWh | 2.5–3 hours | 3.5–4 hours |
| 300Ah | ≈2.9kWh | 4–4.5 hours | 5.5–6 hours |
| 400Ah | ≈3.8kWh | 5.5–6 hours | 7.5–8 hours |

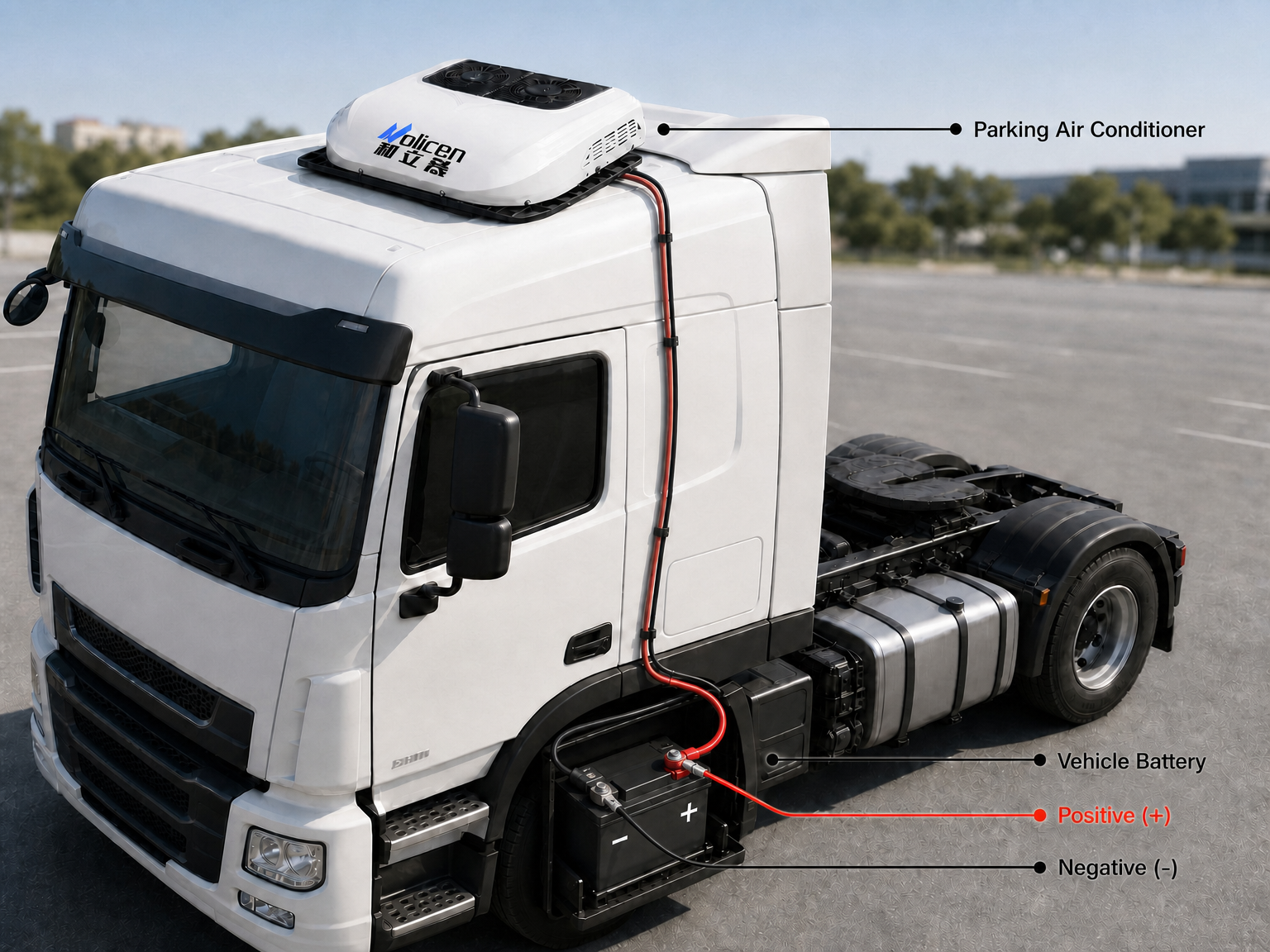

Estimates assume moderate conditions (about 25°C ambient, 22°C set point). Cooler nights and shaded parking extend runtime; direct sun and wide set-point deltas shorten it. Two practical notes: size your DC cabling for peak current (roughly 58A at 12V), and leave headroom in the bank — stop before 20% state of charge to protect battery life.
Why low-voltage protection matters
A parking AC that drains the starter battery leaves you unable to crank the truck. That is why quality units — including our Holicen HLS rooftop models — include built-in low-voltage protection: the unit shuts down before the starting battery is compromised. If you are speccing a system, treat this as a non-negotiable feature.
Example: the Holicen HLS rooftop unit
The Holicen HLS one-piece rooftop parking air conditioner delivers 2,600W of rated cooling at a typical 700W draw, works on both DC12V and DC24V, uses R134A refrigerant, and carries a free 1-year unlimited-mileage warranty. Cooling capacity and power draw vary across the product family — from roughly 300W-class compact models to 3,500W-class heavy-duty units — so match the unit to your cab size and battery bank. On a 300Ah bank the HLS covers a typical overnight rest stop; on 400Ah it can run through a full night in moderate heat.
Reference sources
For fleet-level justification, the US Department of Energy's AFDC page on idle-reduction equipment for heavy-duty trucks is a useful reference (https://afdc.energy.gov/conserve/idle-reduction-equipment), and premium OEM brands such as Dometic publish their own runtime guidance (https://www.dometic.com).
